HT300自动人体温度测量热像仪HT600非接触式温度测量系统
HT300/600高精度温度测量
红外热像仪
可选部件:黑体,支架,网络电缆
HT300 / 600自动人体温度测量热像仪是专为流行病而设计的非接触式,高精度,快速控制的小空间温度测量系统。
借助获得专利的智能补偿温度测量算法,该系统可以在机场/火车站/汽车站/海关/医院/医院/公司/学校/超市等的过道中对体温过高的人进行报警和报警,以防流行 -努力工作。
640×512
384×288
解析度
医学教育
(±b0la.3c℃kbody)
高精确度
回复时间
人> e6 / m0分
助焊剂
测量
机场/火车站/汽车站/海关/医院/公司/学校/超市等的过道
型号HT300 HT600
规格
检测器VOx非冷却热FPA
分辨率384×288 640×512
像素尺寸17μm14μm
响应光谱8?14μm
Theraml图片
极性黑热/白热
调色板多达18个调色板
温度测量
测量范围0℃?60℃
目标温度精度:±0.5℃@ 33℃?42℃(黑体±0.3℃)
软件功能
测量模式智能人脸跟踪与测量
通量> 60人/分钟
高温警报弹出窗口,声音警报,捕获警报
电源
电源9?26V DC
电源保护典型电源的反向连接保护
典型功耗@ 25℃<3W
连接器
网络连接器RJ45
网络协议以太网/ IP,TCP,UDP,SNTP,RTSP,HTTP,ICMP,SMTP,DHCP,UPnP,PPPOE
以太网控制和传输视频
视频协议支持ONVIF
压缩标准
视频压缩标准H.264 / H.265
视频格式mp4,mov
报警
报警功能H.264 / H.265
报警输出mp4,mov
身体特征
重量<700g
尺寸87×73×233(mm)
环境适应
工作温度-10℃?50℃
温度范围-40℃?+ 70℃
湿度5?95%,无凝结
开发包
SDK提供Windows / Linux SDK和手册
备件
备件电缆
High Precise Temperature Measurement
Thermal Bullet Camera
Optional parts: blackbody, bracket, network cable

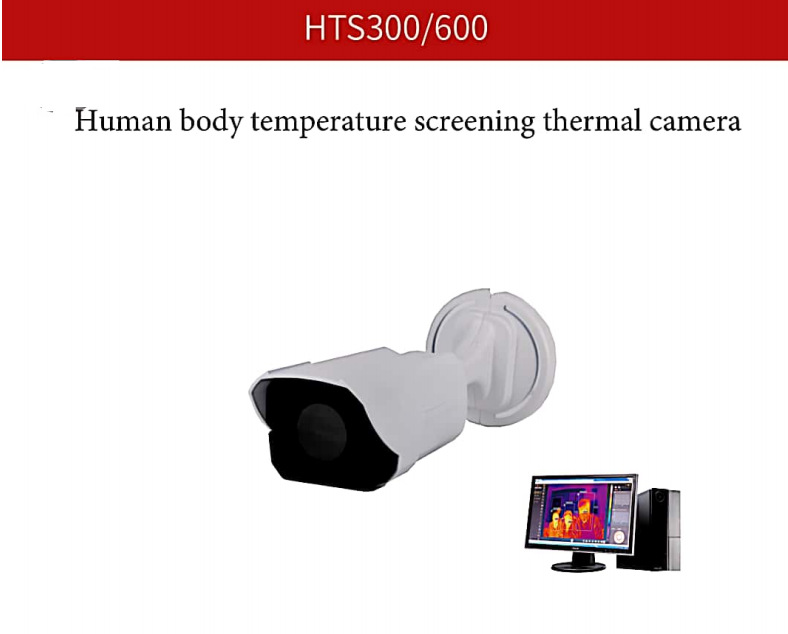

HT300/600 automatic human body-temperature measurement thermal camera is a non-contact, high accuracy, rapid-control in small space temperature measuring system which is designed for epidemic.
With the patented intelligent compensated temperature measurement algorithm, the system can screen people with higody-temperature and alarm in Aisle of Airport/Railway station/Bus station/Customs/Hospi- tal/Company/School/Supermarket etc., supporting for epidemic preven- tion work strongly.
640×512
384×288
Resolution
Medaistarenmceent
(with±b0la.3c℃kbody)
High accuracy
respoAnlasrivme time
peopl>e6/m0 inute
Flux
Measraunregme ent
Aisle of Airport/Railway station/Bus station/Customs/ Hospital/Company/School/Supermarket etc.

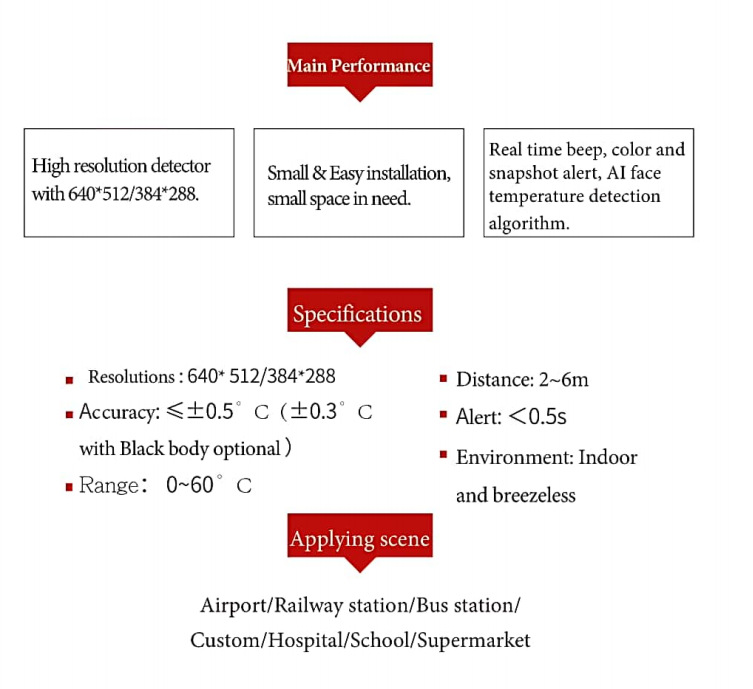

HT Specification
Model | HT300 | HT600 |
| Specification |
Detector | VOx uncooled thermal FPA |
Resolution | 384×288 | 640×512 |
Pixel size | 17μm | 14μm |
Response spectrum | 8~14μm |
| Theraml Image |
Polarity | Black hot/white hot |
Palette | Upto 18 palettes |
| Temperature Measurement |
Measurement range | 0℃~60℃ |
Accuracy | ±0.5℃@ 33℃~42℃ of target temperature(±0.3℃ with blackbody) |
Software function |
Measurement mode | Intelligenthuman face tracking and measuring |
Flux | >60 people/minute |
High temperature alarm | Pop out window, audible alarm, capture alarm |
| Power Supply |
Power supply | 9~26V DC |
Power protection | Reverse connection protection for typical power supply |
Typical consumption @25℃ | <3W |
Connector |
Network connector | RJ45 |
Network protocal | Ethernet/IP, TCP, UDP, SNTP, RTSP, HTTP, ICMP, SMTP, DHCP, UPnP, PPPOE |
Ethernet | Control and transmiss video |
Video protocal | Support ONVIF |
| Compression standard |
Video compressing standard | H.264/H.265 |
Video format | mp4,mov |
| Alarm |
Alarm function | H.264/H.265 |
Alarm output | mp4,mov |
| Physical character |
Weight | <700g |
Dimension | 87×73×233(mm) |
| Environment Adaptation |
Working temperature | -10℃~50℃ |
Storange temperature | -40℃~+70℃ |
Humidity | 5~95%, non-condensing |
| SDK |
SDK | Supply Windows/Linux SDK and manual |
| Spare parts |
Spare parts | Cables |
