The WT3-201 Manual Wire Terminal Tester accurately measures the pull-off force off crimped-on wire terminals. The pull tester is an easy to use all-in-one, single-range solution for a wide range terminal testing applications, eliminating the need to purchase any additional grips, fixtures or accessories. An ergonomic lever allows for easy application of up to 200 lbF (1,000 N) of pull force. Adjustable wire terminal grip contains multiple slots for wire diameters up to AWG 3 (0.25 in [6.3 mm]). A large, backlit graphic LCD displays easy-to-read values, including real-time force, peak force, programmable pass/fail limits, units of measurement, and more. Data can be transferred to a PC or other data collector via USB, RS-232 or analog outputs. On-board data storage for up to 1,000 readings is included, as are statistical calculations and output to a PC. Unique automatic output / data storage / zeroing upon sample break helps automate testing processes. An optional ring terminal fixture may be used to secure ring terminations, and an optional carrying case makes transportation simple and safe.

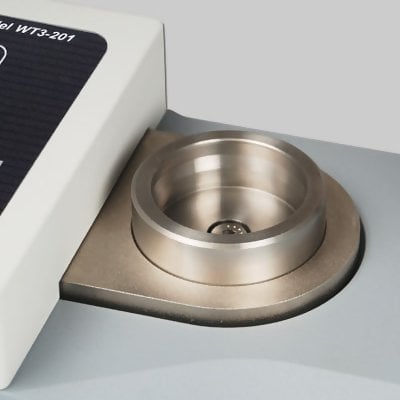

Photo Gallery

Features
Includes NIST Traceable Calibration Certificate without data (upgrade to Long Form Cert with Data by ordering "CERT"). Automatic output / data storage / zeroing upon sample break helps automate testing processes Measures real-time and peak force values USB, RS-232, Mitutoyo (Digimatic), and analog outputs 1,000-point data memory with statistics and outputs Programmable set point indicators and outputs for pass/ fail determination Configurable audio alarms and key tones Ergonomic lever operation produces 200 lbF [1000 N] Password protection prevents unauthorized changes High-speed 7,000 Hz sampling rate accurately captures peak force values Mounting holes for bench mounting CE Mark
 Dimensions
Specifications | Capacity x Resolution | 200 x 0.1 lbF, 100 x 0.05 kgF, 1000 x 0.5 N | | Accuracy | ±0.2% of full scale | | Wire diameter range | AWG30 - AWG 3 [0.03 - 0.25 in (0.8 - 6.3 mm)]* | | Minimum sample length | 6.5 in [165 mm], excluding termination | | Maximum sample elongation | 1.15 in [29.2 mm] | | Power | AC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low. | | Battery Life | Backlight on: up to 7 hours of continuous use
Backlight off: up to 24 hours of continuous use | | Sampling rate | 7,000 Hz | | Outputs | USB / RS-232: Configurable up to 115,200 baud.
Mitutoyo (Digimatic): Serial BCD suitable for all Mitutoyo SPC-compatible Devices.
Analog: ±1V DC, ±0.25% of full scale at capacity. | | Configurable Settings | Digital filters, outputs, automatic shutoff, default settings, passwords, key tones, audio alarms, backlight, calibration | | Safe overload | 150% of full scale (display shows "OVER" at 110% and above) | | Weight | 16.1 lb [7.3 kg] | | Warranty | 3 years (see individual statement for further details) | | Included items | Universal voltage AC adapter, battery, quick-start guide, USB cable, resource CD (USB driver, MESURLite software, MESURgauge DEMO software, and user's guide), NIST-traceable certificate of calibration without data (upgrade to Long Form Cert with Data by ordering "CERT"). |
*Including insulation. To ensure the wire sample will fit into the WT3-201, measure the overall outside diameter of the insulated wire and check against the specified diameter range. Account for sample compressibility in making this determination.
Complete Kit
Universal voltage AC adapter, battery, quick-start guide, USB cable, resource CD (USB driver, MESURLite software, MESURgauge DEMO software, and user's guide), NIST-traceable certificate of calibration without data (upgrade to Long Form Cert with Data by ordering "CERT"). Carrying Case is shown is sold separately. Part number WT3001 - $250.00
Related Products
AC1049
Calibration Kit for WT3-200 Wire Pull Tester |  |
WTT-ESM
Motorized Wire Terminal Tester
|  |
WT3-201M
Motorized Wire Pull Tester |  |

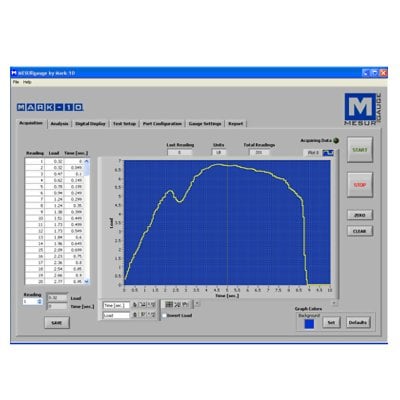

MESURgauge
