The WT3-201M motorized wire pull tester measures pull-off forces of up to 200 lb / 100 kg on crimped terminals. The WT3-200M tests according to UL, ISO, ASTM, SAE, MIL, and other testing standards. The WT3-200M can perform destructive or optionally Non-destructive testing, such as pulling to a load or maintaining a load for a specified period of time, as per the requirements of UL 486A/B. Programmable pass/fail limits with red and green indicators and audio alerts help identify non-conforming samples.
The tester accommodates wire sizes up to AWG 3 (0.25 in [6.3 mm] OD), or custom sizes via the available machinable blank fixture. Auto-start automatically begins the test when the wire sample has been loaded. When the sample breaks, the tester can auto-reverse, output the peak force, store the peak force, and zero the display automatically, thereby increasing testing throughput. Further testing efficiency is achieved via the available Profiles function, through which multiple test setups may be saved and recalled as required.
On-board data storage and statistical calculations is provided for up to 2,000 readings, with available date and time stamp for each saved data point. Data can be transferred to a PC or other data collector via USB, RS-232, Mitutoyo (Digimatic), or analog outputs.
The WT3-201M includes MESURLite data acquisition software. MESURLite tabulates continuous or single point data. One-click export to Excel allows for further data manipulation.

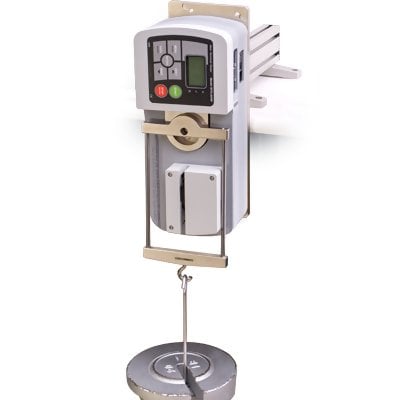

Photo Gallery

Features
3 Year Warranty Measures real-time and peak force values Selectable test speed, w/high speed approach and reverse Auto-start upon sample insertion Auto-reverse at sample break or load USB, RS-232, Mitutoyo (Digimatic), and analog outputs Automatic reverse / output / data storage / zeroing upon sample break helps automate testing processes 2,000-point data memory with statistics, output, and date and time stamp (date and time stamp is optional) Password protection prevents unauthorized changes Pass / fail indicators, audio alerts, and outputs Save and recall up to 500 profiles for various test requirements (optional function) Pull to a specified load or maintain load for a specified period of time, as per UL 486A/B (optional functions) Date / time stamp for all saved data (optional function)

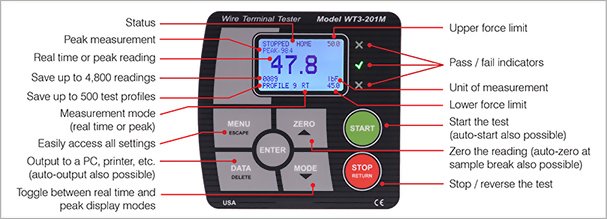

 Controls and Indicators

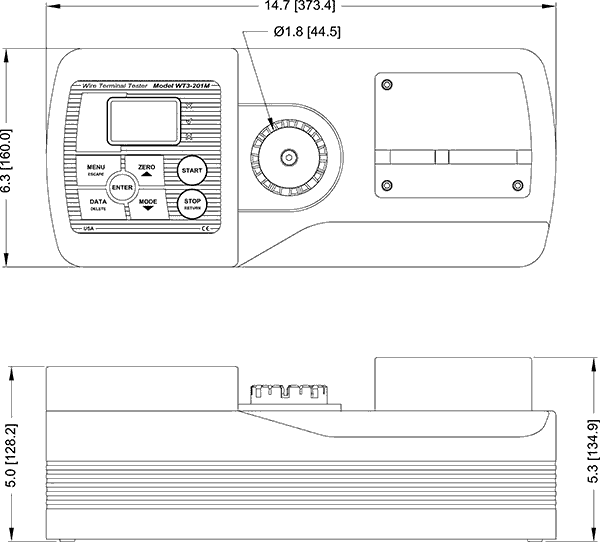

Dimensions
Specifications | Capacity x Resolution | 200 x 0.1 lbF | 3200 x 2 ozF | 100 x 0.05 kgF | 1,000 x 0.5 N | 1 x 0.0005 kN | | Accuracy | ±0.2% of full scale | | Wire gauge range | AWG30 - AWG 3 [0.01 - 0.25 in (0.3 - 6.3 mm)] | | Minimum Sample length | 6.5 in [165 mm], excluding termination | | Max. elongation | Test speed: 0.4 - 12.0 in/min [10 - 300 mm/min]
Approach/reverse speed: 13.0 - 96.0 in/min [325 - 2,400 mm/min] | | Speed setting accuracy | ±0.2% | | Speed variation with load | ±0% [Stepper motor driven] | | Power | Universal input 80-240 VAC, 50/60 Hz | | Battery Life | Backlight on: up to 7 hours of continuous use
Backlight off: up to 24 hours of continuous use | | Sampling rate | 7,000 Hz | | Outputs | USB / RS-232: Configurable up to 115,200 baud.
Mitutoyo: Serial BCD suitable for all Mitutoyo SPC-compatible devices.
Analog: ±1 VDC at capacity, ±0.25% of full scale.
General purpose: Three open drain outputs, one input.
Set points: Three open drain lines. | | Safe overload | 150% of full scale (display shows "OVER" at 110% and above) | | Weight | 26.5 lb [12.0 kg] | | Included items | Power cord, quick-start guide, USB cable, resource CD (USB driver, MESUR? Lite software, MESUR?gauge DEMO software, and user's guide), and NIST-traceable certificate of calibration. | | Environmental requirements | 40 - 100°F, max. 96% humidity, non-condensating | | Warranty | 3 years |
Related Products
WT3-200
Wire Terminal Pull Tester
Measures real-time and peak force values USB, RS-232, Mitutoyo (Digimatic), and analog outputs
|  |
WTT-ESM
Motorized Wire Terminal Tester
|  |
|
