4 Models with Flashrates up to 200 Hz The MVC series strobe illumination system designed for harsh environments. This series of stroboscope has a high output, long life, and outstanding reliability that won’t fail in demanding applications. The MVC series incorporates our best engineering design. This series of stroboscope consists of a xenon flashtube, and the latest reflector and power supply technology. The xenon flashtube produces intense pulses, covering the ultraviolet (UV), visible (VIS) and near infrared (NIR)
Photo Gallery

Features
Chassis Mount Design for OEM applications Highest light output per watt Variable intensity control

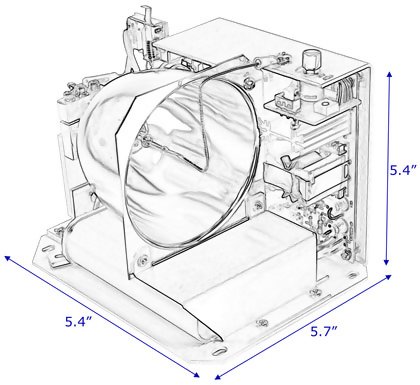

Dimensions
Specifications
| MODEL | MVC-4010 | MVC-4020 | MVC-4060 | MVC-40200 | | Spectral Bandwidth | Standard: 400-850 nm
Custom: 225-1100+ nm | | Radiometric Light Output | 210mJ | 120Mj | 50mJ | 25mJ | | Flashrate in Hz @ 600V | 10 max | 20 max | 60 max | 200 max | | Pulse duration @ 1/3 peak | 30 μsec | 15 μsec | 10 μsec | 7 μsec | | Fiber bundle outside diameter | 1.0 inch (25mm) max | | Electrical Specifications | | Input Voltage | 120/230VAC ±10%, 50/60Hz | | Input Power | 40 Watts | | Trigger Input | +5V, 20mA, 10-100μsec pulse (into an optoisolator with internal 150 ohms nominal series resistor) | | Flash Lamp Voltage (Factory Set) | 600 VDC | | Discharge capacitor: | 30 μF | 12 μF | 4 μF | 1 μF | | Input energy per flash @ 600V | 5.41 joules/flash | 2.16 joules/flash | 0.72 joules/flash | 0.18 joules/flash | | Delay between flash command and light output | 10 μsec (typ) | | Ext. ref. voltage | 1 to 6 volts DC (V0-Vref x 60) | | General Specifications | | Storage Temperature | -40 - 90° C | | Operating Temperature | 0 - 40° C | | Dimensions | 5.4" x 5.4" x 5.7" W | | Weight | 13.4 lbs (6 Kg) |
