The new LS-5-LED is a high-performance LEDs produce a bright/sharp image and uniform light distribution for web widths up to 12" (300mm) and wider. High Llight Output: 80 high-performance LEDs provide powerful light intensity. The large, homogenous illumination surface delivers superb results in diffi cult light conditions, making the LS-5-LED suitable for a wide range of measurement, observation and inspection functions, especially for demanding applications, such as those in the printing industry. Superb image sharpness: Adjustable fl ash duration from 1 to 1000 ì seconds, allows you to easily fi nd the best combination between light intensity and sharp images for every application. Flexible adjustments for all applications: Alternatively, the stroboscope can be controlled directly by the trigger signal of your system without the need for additional control units or by various strobe control devices. When using these trigger options simultaneously, you can easily alternate between the signal inputs. Additional control options: LS-5-FCM: A simple and inexpensive unit for controlling fl ash frequency. You simply insert this small control unit into one of the sockets on the reverse side of the device. LS-5-RCU: For adjusting the fl ash frequency, phase shift, delay time and trigger divider. This unit is connected to the stroboscope by cable and provides the convenience of remote control even if the stroboscope within your machine is diffi cult to access.
Features

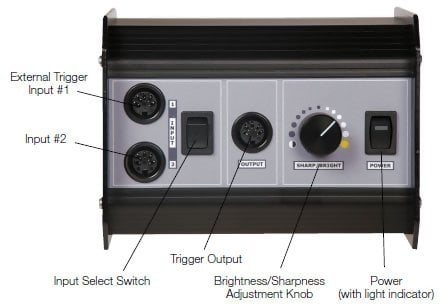

Light intensity of 6000 Lux peak LEDs provide lifetime use and never require replacement. Extremely bright and uniform light distribution for web widths up to 12" (300mm) and wider. Powered by 24 VDC, An optional universal AC-DC power supply is available. Connections include two trigger inputs and one trigger output. Power can be connected in either of these three locations. For web widths greater than 12" (300mm), two or more strobes can be connected in parallel.

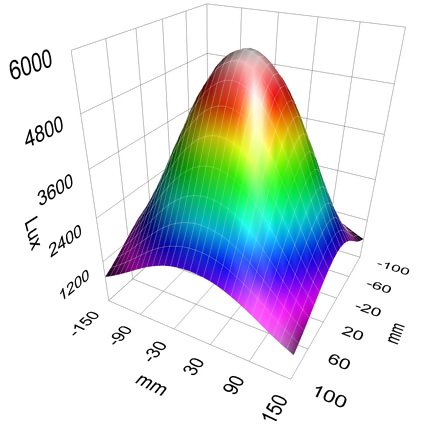

Light Output (LUX) vs Distance
Overview of LCD Strobe Models
| MODEL | LEDS | ARRAY SIZE | BRIGHTNESS (PEAK) | HOUSING WIDTH | PRICE (US$) |
|---|
| LS-5-LED | 80 | 10 x 8 | 6000 Lux | 150 mm
(6 inch) | 1295 | | LS-9-LED | 120 | 15 x 8 | 7500 Lux | 230 mm
(9 inch) | 1995 | | LS-9-LED-WB | 120 | 5 x 8 (3x) | 7500 Lux | 440 mm
(17 inch) | 2395 | | LS-18-LED | 200 | 25 x 8 | 9000 Lux | 440 mm
(17 inch) | 2995 |
Specifications
| LEDs | 200 in a 25 x 8 array | | Frequency Range | 0...120000 FPM (flashes per minute) | | Power Required | 24 VDC (+/-10%) / 40 W
DIN 41524 5-pin standard plug
universal power supply optionally available (LS-5-AC-WORLD) | | External Trigger Input | 3...30 V / max. 5 mA
Ppotential-free optocoupler
DIN 41524 5-pin standard plug
Uout = Uin, max. 200 mA
switchable trigger input | | Trigger Output | for connection to 2nd Strobe (Slave) | | Illumination Intensity | 9,000 Lux / 12" / 30cm | | Light intensity/sharpness | Adjustable with turning knob | | Illumination intensity single flash | 1.2 Mega-Lux / 12" / 30cm | | Illumination area | 12 x >20" (30 x >50cm) | | Flash color | ca. 5000...8.300 K | | Material | Aluminum | | Dimensions | 6.0" x 5.1" x 4.4" (150 x 130 x 112mm) | | Weight | 2.09 lbs | | Ambient temperature | 0°...40°C (32°...114°F) | | Storage temperature | -25°C...70°C (-10°...125°F) | | Humidity | max. 95% not condensing | | Certifications | Certificate of CE conformity | | Warranty | 1 Year |
