Available Scales: A, B, C, D, DO, M, O, OO, OOO

The new Check?Line RX-DD is a precision Digital Durometer ideal for laboratory use. It features a large direct drive LCD display, RS232 data ports for computer compatibility, a locking feature to prevent accidental erasure of tolerances, automatic shutoff, low battery warning, and accessories such as MTI and SPC type printers, audio attachments and software.

Type M Durometers require test stand OS-3 per ASTM D2240

Features

• High and low buttons for setting tolerance limits

• Solid state circuitry with LCD display

• One year warranty

• Holds Peak reading until reset

• 0.1 Unit Resolution

• Supplied in custom fit carrying case

• Includes NIST Calibration Certificate

• Conforms to ASTM D-2240

Photo Gallery

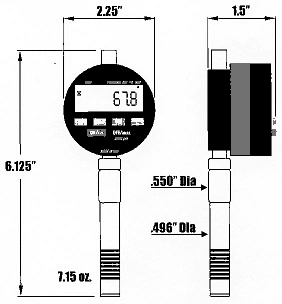

Dimensions

Complete Kit

The RX-DD is supplied as a complete kit including the durometer, AC adapter & instruction manual in a foam-fitted metal carrying case.

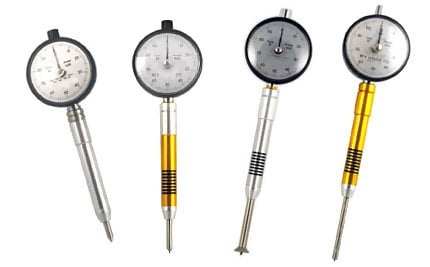

Slim Probe Durometers

We offer custom slim probe versions of most durometer models and types. The slim probe attachment can be modified to fit your specific needs or applications.

Specifications

Related Products

RX-DD-MS Digital Multi-Scale Durometer Digital Multi-Scale Durometer allows user to measure in a variety of scales with one guage

SWC-1 RX Lab Durometer Software Provides a running log of all measurements along with a chart of the data as well as statistical information Includes RS-232 Cable

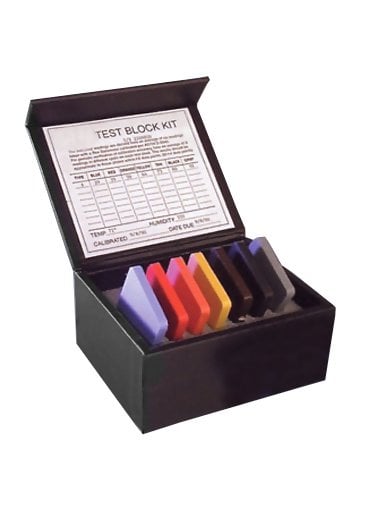

Durometer Test Block Kits Test Function Of Durometers Enables user to perform a quick check for proper durometer operation

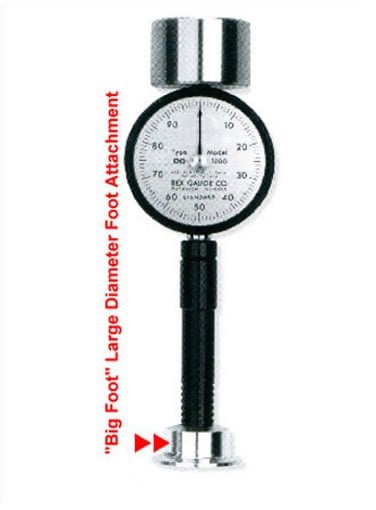

RX-BF "Big Foot" Durometer Foot Adapter The Big Foot increases the diameter of the foot from 1/2" to 1 3/8" diameter

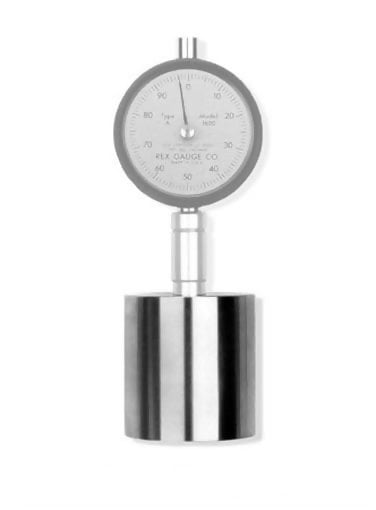

RX-CLW Constant Load Weight for Types A, B, O, OO & OOO The Constant Load Weight for gauges with an 822g springload (types A, B, O) slides onto the lower barrel of the gauge, gives it a wider foot, and raises the mass of the gauge to the suggested 1kg
